Power Worth Searching For
ATX-10515

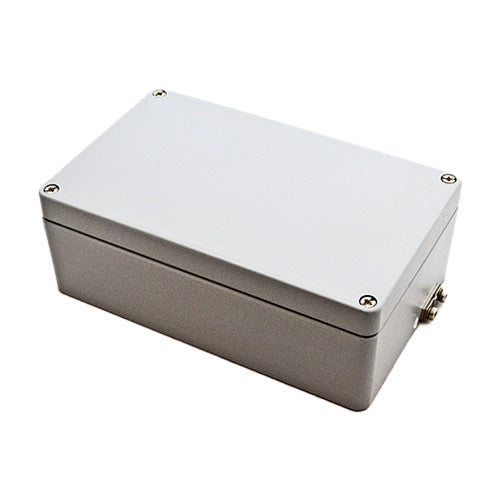

Explosion Proof Aluminum Enclosure ATX-10515, Explosion Proof Aluminum Enclosure (10.2 X 6.3 X 3.5 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
10.24x6.3x3.54 inches
Internal Dimensions:
3.54x8.38x3.3 inches
Ratings:
IP66
Material:
Aluminum
Color:
Gray Powder Coat
Known Country of Origin:
India
Features
ATEX Rating: II 2 G Ex e IIC Gb
ATEX Rating: II 2 D Ex tb IIIC Db IP 66
ATEX Rating: DEMKO 13 ATEX 1327771U
ATEX Rating: IECEx UL 13.0042U
ATEX Rating: EX# 0539
Intended for use in areas in which explosive atmospheres caused by gases, vapors, mists or air/dust mixtures are infrequent.
Service Temperature Range: -50 °C to +135 °C
Made of Extra Corrosion-resistant Aluminum AlSi 12
Heavy Duty Construction
Powder Coated Light Gray (RAL-7001)
Captive stainless screws in the cover
Continuous Gasket made of Silicone rubber
Four copper plated ground screws in body for ground and plate assembly
External Ground Bracket for dedicated ground connection
UL Listed Type 6P File #E358256
ATEX Directive restricted Modifications (refer to product drawings)
