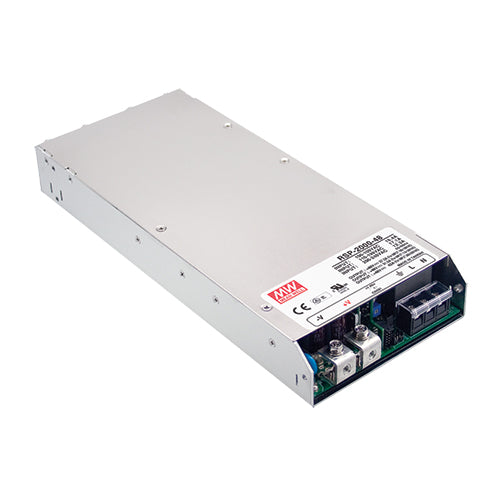

RSP-2000-12
12Vdc Power Supply Parallel Function 12V 100AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
100 Amps
Max Power:
1200 Watts
Features
AC input range: 90~264Vac
Operating temperature: -35~+70°C
Safety standard: UL62368-1
Forced air cooling via built-in DC fan; featuring internal fan speed control
Current sharing up to 4 RSP-2000-12 8,000W(3+1)
Built-in remote On/Off control, over temperature alarm and remote sense function
12V/1A & 5V/0.3A auxiliary outputs
Output voltage can be externally trimmed via a DC source signal between 40~115% of the rated output voltage
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
