GEM12I12-P1J

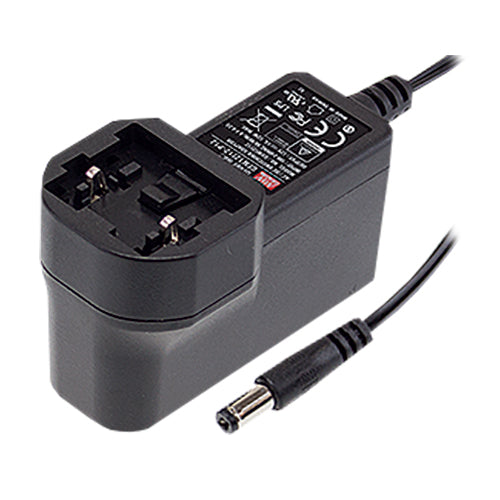

12V Medical Wall Plug-In Interchangeable AC Plugs 12V 1AmpsManufacturer: MEAN WELL
View Data Sheet
In Stock: 203 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
1 Amps
Max Power:
12 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 80~264Vac
Working temperature: -20~+70°C
Medical safety approval: ANSI/AAMI ES60601-1/ES60601-1-11
2 x MOPP
Suitable for BF applications with appropriate system consideration
Low leakage current: <100μA
Energy efficiency level VI
No load power consumption <0.075W
Class II (without earth pin)
Interchangeable AC plugs (plug kit sold separately)
DC output connector: 2.1 x 5.5mm, center positive
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
