TOP 100-112

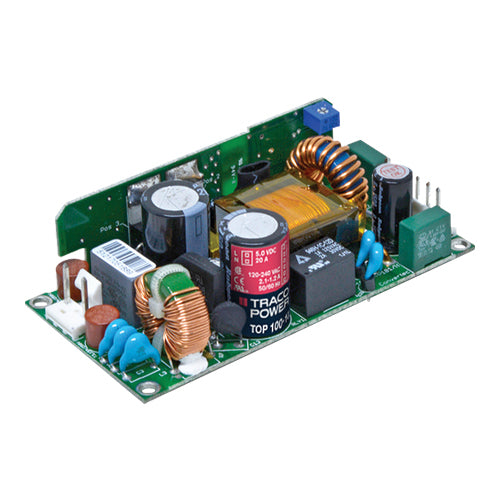

12Vdc 8.3A, 12 Volt 2x4" Power Supply Open FrameManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
115/230Vac Auto Selectable
Output Voltage:
12Vdc
Output Max Current:
8.3 Amps
Max Power:
100 Watts
Known Country of Origin:
China
Features
TRACO Power TOP 100-112 2x4 open frame power supply
AC input range: 90~132Vac or 187~264Vac auto-ranging
Operating temperature: -25~+70°C
ITE safety approval: UL60950-1, IEC/EN 60950-1
EMI filter meets EN 55022, level B
Compliance with EN 61000-3-2
Class I Class II
Low leakage current
High efficiency
Protections: short circuit / over load / over voltage
TRACO Power 3 year warranty
