PFA300-12A
12Vdc Open Frame Power SupplyManufacturer: TT Electronics
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
25 Amps
Output Peak Current:
33.33 Amps
Max Power:
300 Watts
Known Country of Origin:
Not specified
Features

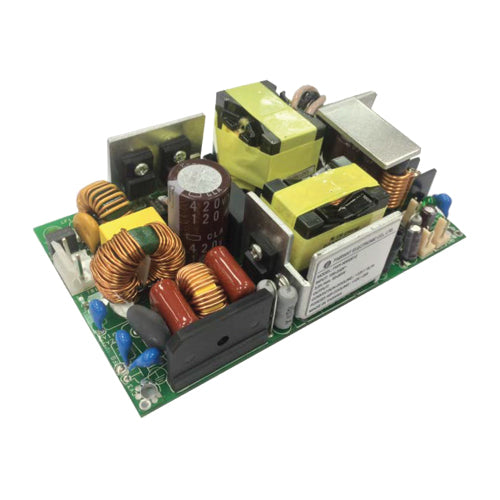

Power Partners PFA300-12A compact 3x5 inch open frame ITE power supply
AC input range: 90~264Vac
Operating temperature range: -30~+85°C (with derating)
Safety approvals: cUL/UL 60950-1 2nd Amdt.
400W peak power capability
200W natural convection cooled at +50°C
<0.3W standby power
Built-in 12V fan output and remote sense
Protections: short circuit / over load / over voltage / over temperature
Optional u-channel and enclosed (w/fan) versions available
TT Electronics 1 year warranty
