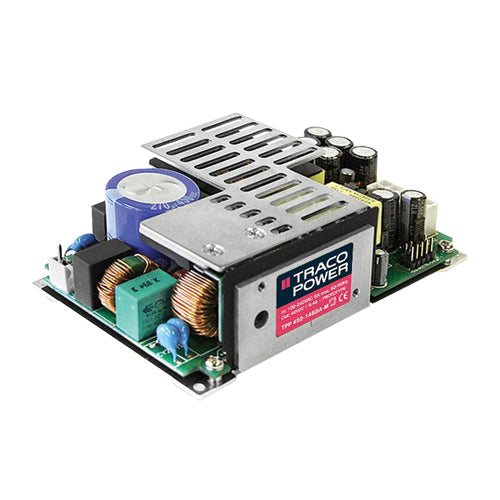

TPP 450-115BA-M
15Vdc Medical Power Supply 3x5 Open Frame, Class II 15 Volts 30 AmpsManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$201.60
5
$195.33
10
$192.79
25
$186.46
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
15Vdc
Output Max Current:
30 Amps
Max Power:
450 Watts
Features
TRACO Power TPP 450-115BA-M high power density 3x5 inches open frame medical & industrial power supply
AC input range: 85~264Vac
Operating temperature range: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for type BF applications
EMC emission compliant to IEC 60601-1-2 4th edition
Class I and class II prepared
Low leakage current ≤100µA
No load power consumption ≤0.5 Watts
Built-in 5V/2A standby output
Integrated variable speed fan controller for easy use of external fan
Remote On/Off
Remote sense function
DC OK signal
Power good signal
Adjustable output voltage
Built-in PFC, Operation up to 5000m altitude
