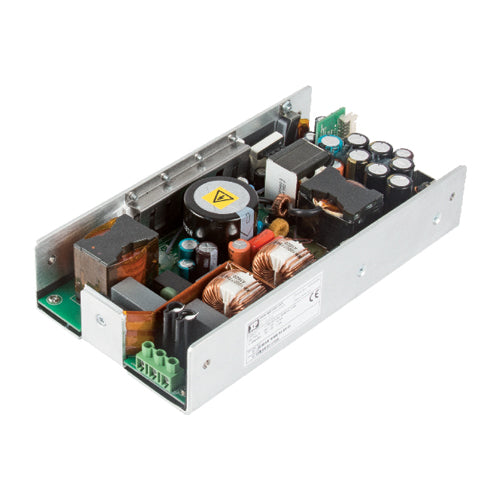

CMP250PS24
24Vdc 10.4A, 24V Chassis Type Power Supply, Medical & ITE Certifications, 24 Volts 10.4 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
10.4 Amps
Output Peak Current:
20.8 Amps
Max Power:
250 Watts
Known Country of Origin:
China
Features
XP Power CMP250PS24 u-channel medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for Type BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Peak power 500W for 60 seconds
Current sharing up to 750 Watts
Built-in PFC
Low earth leakage current 250µA max
AC OK signal
Built-in remote On/Off
Remote sense function
No load power consumption <1.3 Watts
Built-in 5V/1.5A standby output, Built-in 12V/0.6A auxiliary output
Adjustable output voltage, Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
