DRM-24V480W3PN

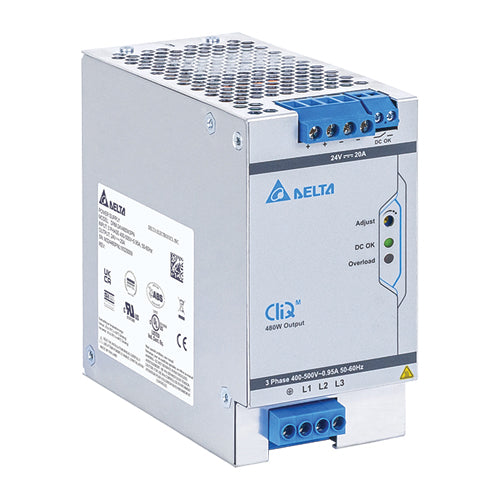

24Vdc 20A Power Supply DIN Rail w-3-Phase 24 Volts 20 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$339.25
5
$334.54
10
$329.95
25
$325.50
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
380~575Vac Dual Phase / 320~575Vac Three Phase
Output Voltage:
24Vdc
Output Max Current:
20 Amps
Max Power:
480 Watts
Known Country of Origin:
China
Features
DIN rail power supply
AC input range: 2-Phase 380~575Vac or 3-Phase 320~575Vac
Operating temperature range: -25~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, UL 60950-1, UL 508 Listed, IEC 61010-1
SEMI F47
SELV
Built-in constant current circuit for charging application
LED indicator for DC OK/Power On
Peak power 150% for 5 seconds
IP20
Adjustable output voltage
Built-in PFC
Conformal coating on PCBAs to protect against common dust and pollutants
Overvoltage Category III
Protections: overload / overvoltage / over temperature / short circuit
Operation up to 5000m altitude
DC-OK Signal
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
