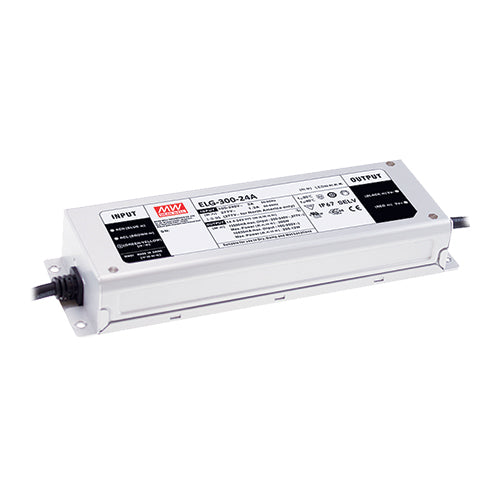

ELG-300-24A
24Vdc 12500mA 24Vdc/12.5A/10.63A LED Driver 300W/255W CV,CC, IP67Manufacturer: MEAN WELL
View Data Sheet
In Stock: 57 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
100~305Vac
Output Voltage (CV mode):
24Vdc
Output Max Current (CV mode):
12.5 Amps
Output Current (CC mode):
12.5 Amps
Constant Current Operating Range:
14.4~24Vdc
Max Power:
300 Watts
Known Country of Origin:
China
Features
AC input range: 100~305Vac (low line derating)
Working case temperature: -40~+85°C
Safety approval: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
IP67, durable metal enclosure
Built-in PFC
Withstands 5G vibration
High efficiency
Output voltage and current level adjustable through internal potentiometer
Protections: over current / short circuit / over voltage / over temperature
MEAN WELL 5 year warranty
