Power Worth Searching For

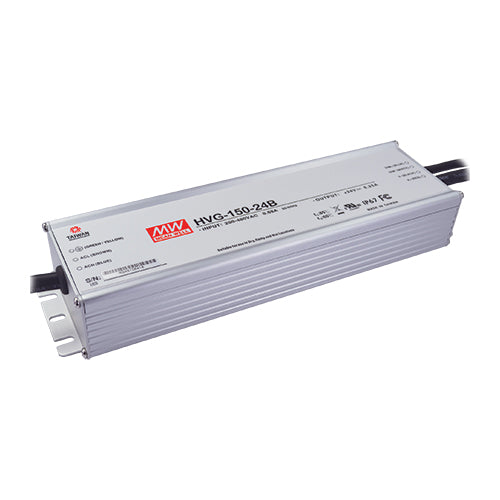

HVG-150-24AB
I/P 180~528Vac O/P 24V 6.25A 24Vdc Dimmable LED Driver Wide Input Range: 180~528Vac 3 in 1 Dimming, IP65, CC or CVManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$111.82
5
$106.47
10
$101.78
20
$98.84
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
180~528Vac
Output Voltage (CV mode):
24Vdc
Output Max Current (CV mode):
6.25 Amps
Output Current (CC mode):
6.25 Amps
Constant Current Operating Range:
13.2~24Vdc
Max Power:
150 Watts
Known Country of Origin:
China
Features
Wide AC input range: 180~528Vac
Operating case temperature: -40~+85°C
Safety approvals: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
Built-in PFC
IP65 durable metal enclosure
Output voltage and constant current level can be adjusted through internal potentiometers
3 in 1 dimming function: 0-10Vdc dimmer (dim to off), 10V PWM dimmer, or resistance dimmer
Withstands 5G vibration
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 5 year warranty
