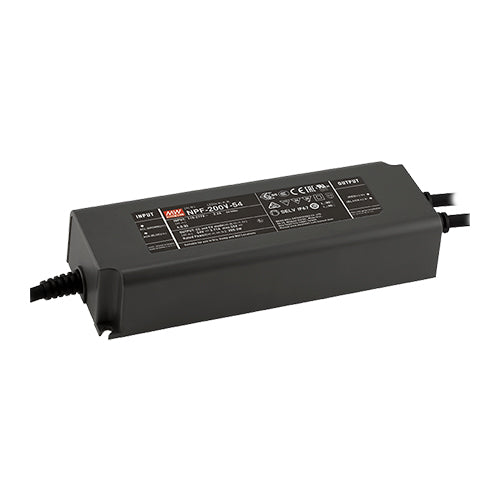

NPF-200V-24
24Vdc /8.3A Dimmable LED Driver IP67Manufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
100~305Vac
Output Voltage (CV mode):
24Vdc
Output Max Current (CV mode):
8.3 Amps
Output Current (CC mode):
8.3 Amps
Constant Current Operating Range:
12~24Vdc
Max Power:
199 Watts
Known Country of Origin:
China
Features
Constant voltage dimming
AC input range: 100~305Vac
Operating case temperature: -40~+85°C
Lighting safety certification: UL 8750
Type HL Class I, Div. 2 hazardous (classified) location
Class II
Built in PFC
Constant voltage 3 in 1 dimming-dim to off (0~10Vdc dimmer, 10V PWM signal, or resistance)
IP67 plastic enclosure
SELV
High efficiency
Withstands 5G vibration
Protections: short circuit / overload / overvoltage / over temperature
MEAN WELL 5 year warranty
