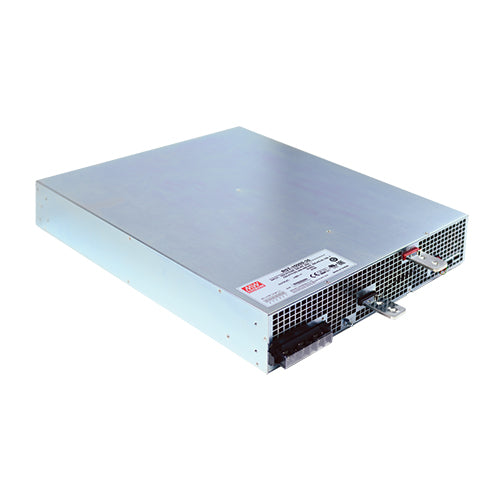

RST-10000-24
24Vdc 400A, 10kW, 24 Volt DC Power Supply PFC 24 Volts 400 Amps, 10000 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 8 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$3,100.80
5
$2,953.90
10
$2,823.40
20
$2,741.80
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
3ψ3-wire /△196 ~ 305VAC or 3ψ4-wire / Y 340 ~ 530VAC
Output Voltage:
24Vdc
Output Max Current:
400 Amps
Max Power:
9600 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 3 Phase 3 wire Δ 196~305Vac or 3 Phase 4 wire Y 340~530Vac
Operating temperature range: -30~+70°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Built-in active PFC
Current sharing: up to 2 RST-10000-24 units
Forced air cooling by built-in DC fan with fan speed control function
Output voltage can be trimmed between 20~120% of the rated output voltage via 1~6Vdc external control signal
Output current can be adjusted between 20~100% of the rated output current via 1~5Vdc external control
Alarm signal output via relay contact & open collector signal: AC Fail, DC OK, fan fail & over temperature protection
Built-in 12V/0.1A auxiliary output - Only for remote On/Off control
Remote ON/OFF control & remote sense functions
Protections: short circuit / overload / over voltage / over temperature / fan failure
MEAN WELL 5 year warranty
