SLD-150-24

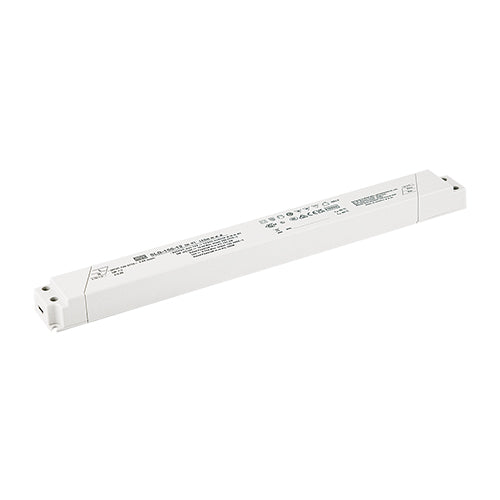

24Vdc 6.3A, 150W Slim LED Driver, Slim and Linear Design, 150 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
120~305Vac
Output Voltage (CV mode):
24Vdc
Output Max Current (CV mode):
6.3 Amps
Output Current (CC mode):
6.3 Amps
Constant Current Operating Range:
16.8~24Vdc
Max Power:
151 Watts
Known Country of Origin:
China
Features
150 watt low profile LED driver
Wide AC input range: 120~305Vac
Operating case temperature: -25~+85°C (derating below 200Vac)
Constant Voltage + Constant Current output (12V/24V models)
Constant Power output (56V model)
Built-in PFC
Class II
No load power consumption <0.5 Watts (12V/24V models)
High efficiency
Protections: short circuit / over voltage / overcurrent / over temperature
MEAN WELL 5 year warranty
