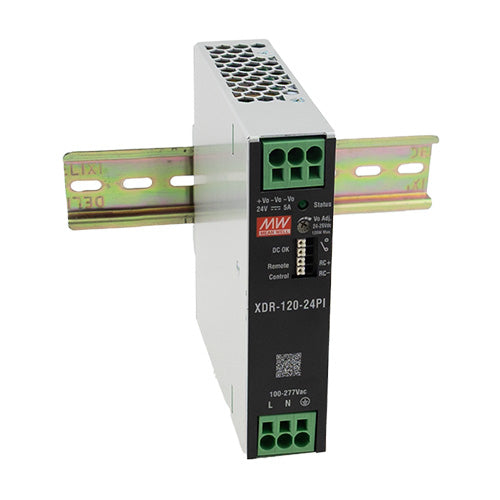

XDR-120-24PI
24Vdc 5A, Ultra Slim Industrial DIN Rail Power, Push In Terminal, 12 Volts 10 AmpsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~305Vac
Output Voltage:
24Vdc
Output Max Current:
10 Amps
Output Peak Current:
240 Amps
Max Power:
120 Watts
Known Country of Origin:
China
Features
High-End Ultra Slim Industrial DIN rail power supply
AC input range: 85~305Vac
Operating temperature range: -40~+85°C
Terminal Type: Push In
UL 61010; Global certificates in multi-fields: ITE 62368-1, Industrial 61558-1/-2-16,61010 & Marine DNV, SEMI47, CID2 HazLoc approved
200% peak power capability
600% pulse current capability
SELV
Overvoltage category III
Built-in constant current limiting circuit
Built-in remote ON/OFF control and DC OK relay contact
Conformal Coating
Installed on DIN rail TS35 / 7.5 or 15
Protections: short circuit / overload / overvoltage / over temperature
MEAN WELL 5 year warranty
