LOF225-20B24
24 Volt 2x4 Power Supply Medical and ITE Certs 24 Volts 9.4 AmpsManufacturer: Mornsun
View Data Sheet
In Stock: 34 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
9.4 Amps
Max Power:
225 Watts
Known Country of Origin:
China
Features

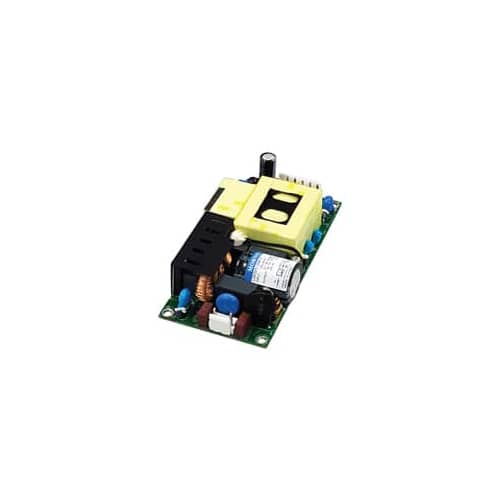

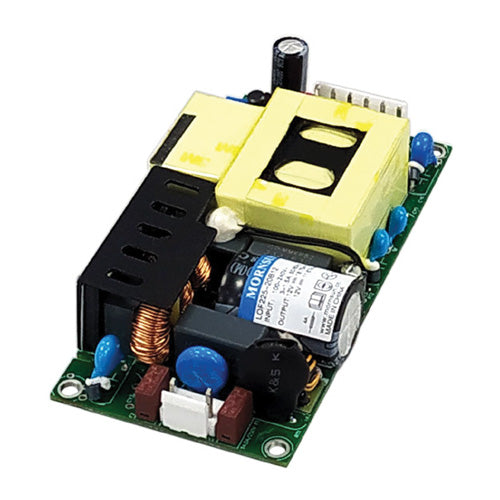

MORNSUN LOF225-20B24 2x4 inches open frame power supply
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1
2xMOPP
Suitable for BF application
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low leakage current <0.1mA
Built-in PFC
Built-in auxiliary fan output
High efficiency
Class I and class II prepared
Adjustable output voltage
LED indicator for power On
No load power consumption ≤0.5 Watts
Operation up to 5000m altitude
Conformal coating (baseplate)
Protections: short circuit / overvoltage / overcurrent / over temperature
Mornsun 5 year warranty
