TPI 30-124A-JP

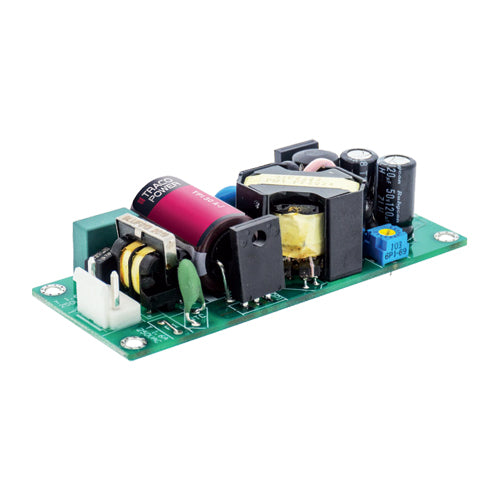

24V 1.25A, Open Frame Power Supply Peak Current 24 Volts 1.25 AmpsManufacturer: TRACO Power
View Data Sheet
In Stock: 10 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.25 Amps
Output Peak Current:
1.667 Amps
Max Power:
30 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TPI 30-124A-JP compact open frame AC/DC power supply
AC input range: 85~264Vac
Operating temperature: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Reinforced I/O isolation 3000Vac
Peak power 130% for 10 seconds
Protection class II
Low leakage current <100µA
No load power consumption <0.3 Watts
Operation up to 5000m altitude
Protections: short circuit / overvoltage
TRACO Power 3 year warranty
