Power Worth Searching For
PPWAM150-14A

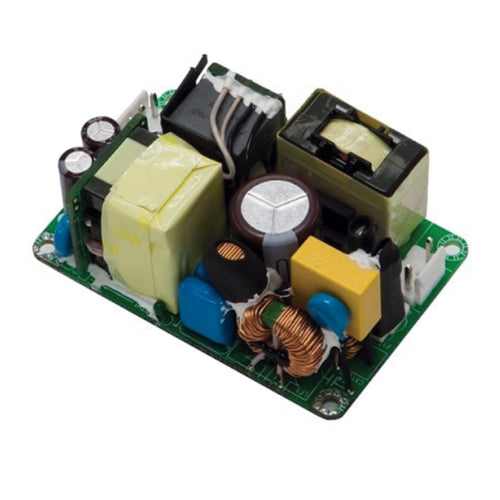

24 Volt DC Power Supply Open Frame 24 Volts 6.25 AmpsManufacturer: TT Electronics
View Data Sheet
In Stock: 10 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
6.25 Amps
Max Power:
150 Watts
Known Country of Origin:
Taiwan
Features
Power Partners PPWAM150-14A 2x3 open frame medical and ITE power supply
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1
2xMOPP
Suitable for BF application
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
No load power consumption <0.15 Watts
High efficiency
High power density 21.18W/in³
Low earth leakage current <100µA @264Vac
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / short circuit
TT Electronics 1 year warranty
