AQM300PS24

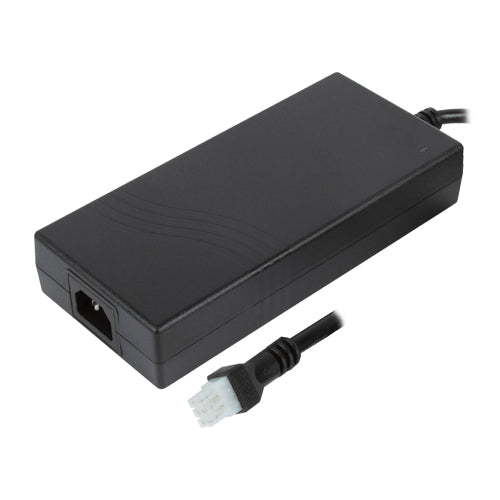

24Vdc 12.5A, 24V Desk Top Power Adaptor, Medical Certifications, 24 Volts 12.5 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$324.74
5
$315.00
10
$305.26
25
$292.27
100
$272.79
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Max Power:
300 Watts
Known Country of Origin:
China
Features
XP Power AQM300PS24 desktop medical power supply
AC input range: 85~264Vac
Operating temperature: 0~+60°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Low leakage current ≤100µA
Energy Efficiency Level VI
Built-in PFC
Class I
No load power consumption ≤0.15 Watts
IP22
AC inlet: IEC 320-C14
DC plug type: 6 pin MOLEX mini fit
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
AQM300PS24
24Vdc 12.5A, 24V Desk Top Power Adaptor, Medical Certifications, 24 Volts 12.5 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Max Power:
300 Watts
Known Country of Origin:
China
