SGAS15A24-P1J

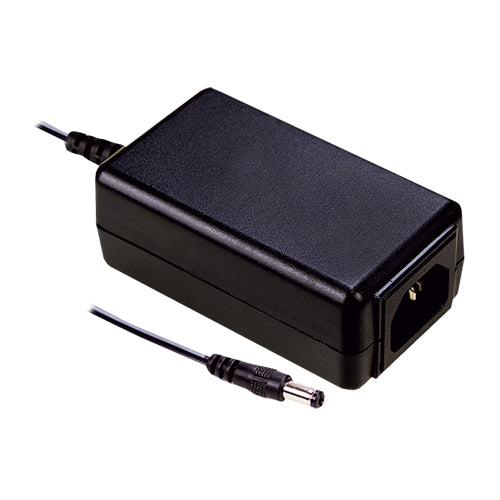

24V Desk Top Power Adaptor AC Inlet IEC320-C14 24 Volts 0.625 AmpsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
0.625 Amps
Max Power:
15 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 90~264Vac
Operating temperature: -20~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Complies with EISA 2007/DoE, EU ErP, CoC Version 5
Low leakage current: ≤0.25mA/240Vac
No load power consumption: <0.075W
Energy Efficiency Level VI
AC inlet: IEC 320-C14
DC plug type: 2.1 x 5.5 x 11mm center positive
Pass LPS
Class I
Optional DC output plugs available
Protections: short circuit / overload / overvoltage
MEAN WELL 3 year warranty
