Power Worth Searching For

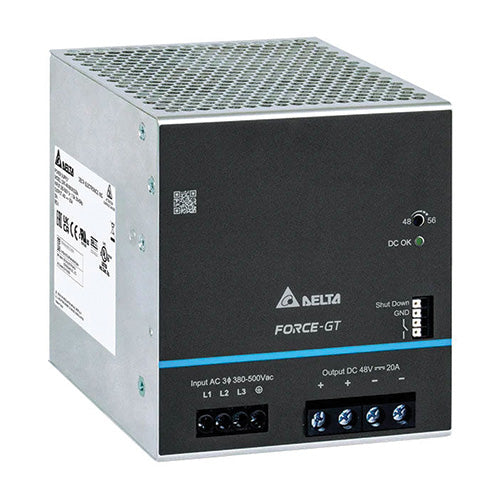

DRF-48V960W3GBA
48Vdc, 20A, 3 Phase DIN Rail Power Supply, 48 Volts 20 Amps, PFC, Conformal CoatedManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$355.23
5
$350.30
10
$345.50
25
$340.83
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
340-575 Vac Dual Phase / 320-575 Vac Three Phase
Output Voltage:
48Vdc
Output Max Current:
20 Amps
Max Power:
960 Watts
Known Country of Origin:
China
Features
3 phase DIN rail power supply
AC input range: 2-Phase 340-575Vac or 3-Phase 320-575Vac
Operating temperature range: -40~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, UL 61010-1 listed
SEMI F47
SELV
Ultra-slim design
Built-in PFC
DC OK signal
Adjustable output voltage
Constant Current mode operation
Conformal coating on PCBAs to protect against common dust and pollutants
Over Voltage Category III
Horizontal or vertical mounting options
LED indicator for Power On
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
Surge Capacity with SPD up to 6kV
DELTA Power 2 year warranty
