EPS-65S-48

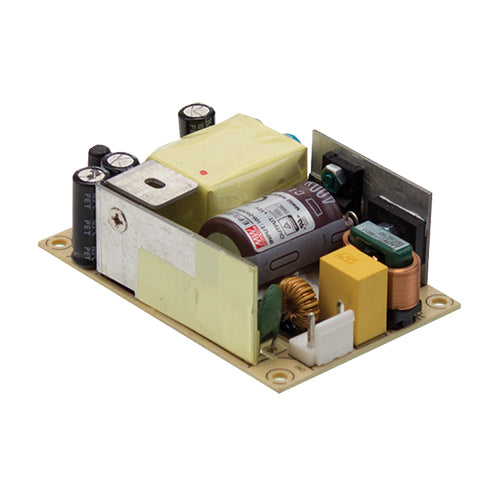

48Vdc 1.36 48V Power Supply 3"x2" Open Frame 48V 1.36AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.36 Amps
Output Peak Current:
1.49 Amps
Max Power:
65 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C
Safety approvals: UL 62368-1 and TUV EN 62368-1
Class II (without FG) installations
Miniature size: 3x2"
No load power consumption <0.1W
Operating altitude up to 5,000 meters
LED indicator for power On
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
