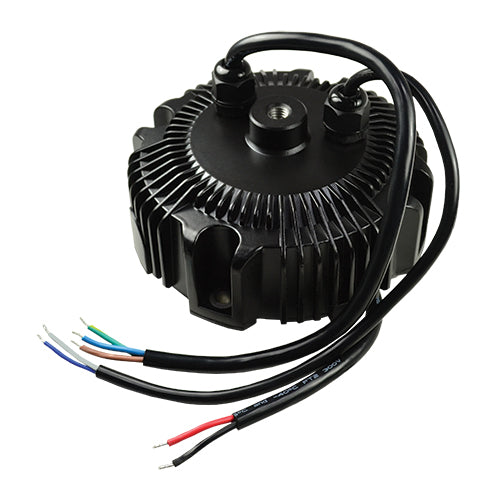

HBG-160-48A
48Vdc 3.3A 48 Volt LED Power Supply IP65, Circular Shape, PFC Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
In Stock: 7 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
48Vdc
Output Max Current (CV mode):
3.3 Amps
Output Current (CC mode):
3.3 Amps
Constant Current Operating Range:
28.8~48Vdc
Max Power:
158 Watts
Known Country of Origin:
China
Features
AC input range: 90~305Vac
Operating case temperature: -40~+85°C
UL8750, SELV
Type HL for use in Class I, Division 2 hazardous (Classified) location
Built-in active PFC function
IP65 fully potted circular aluminum case
Output constant current level can be adjusted through internal potentiometer
Protections: short circuit / over current / over voltage / over temperature
Applications: The HBG LED power supply is easy to assemble and fit with the mechanical structure of highbay & lowbay lighting fixtures.
MEAN WELL 5 year warranty
