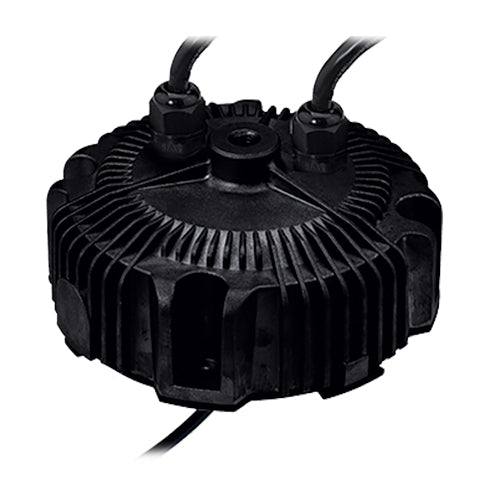

HBG-200-48AB
I/P 90~305Vac O/P 28.8-48V / 4.1A Dimmable LED Power Supply Built-In Potentiometer, IP65 3 in 1 Dimming FunctionManufacturer: MEAN WELL
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
48Vdc
Output Max Current (CV mode):
4.1 Amps
Output Current (CC mode):
4.1 Amps
Constant Current Operating Range:
28.8~48Vdc
Max Power:
196 Watts
Known Country of Origin:
China
Features
AC input range: 90~305Vac
Operating case temperature: -40~+85°C
Safety approval: UL 8750, SELV
Type HL for use in Class I, Division 2 hazardous (Classified) location
Built-in PFC
Withstand 5G anti-vibration
High efficiency
IP65 circular metal housing
Output current adjustable through built-in potentiometer with 3 in 1 dimming function
Protections: short circuit / over current / over voltage / over temperature
Applications: LED high/low bay lighting, LED street lighting and indoor/outdoor lighting
MEAN WELL 5 year warranty
