Power Worth Searching For
TPI 30-148A-JP
48V 0.63A, Open Frame Power Supply Peak Current 48 Volts 0.630 AmpsManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
0.63 Amps
Output Peak Current:
0.833 Amps
Max Power:
30 Watts
Known Country of Origin:
Taiwan
Features

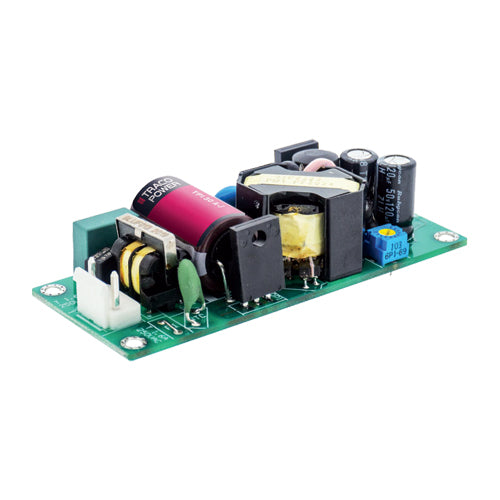

TRACO Power TPI 30-148A-JP compact open frame AC/DC power supply
AC input range: 85~264Vac
Operating temperature: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Reinforced I/O isolation 3000Vac
Peak power 130% for 10 seconds
Protection class II
Low leakage current <100µA
No load power consumption <0.3 Watts
Operation up to 5000m altitude
Protections: short circuit / overvoltage
TRACO Power 3 year warranty
