GST25U48-P1J

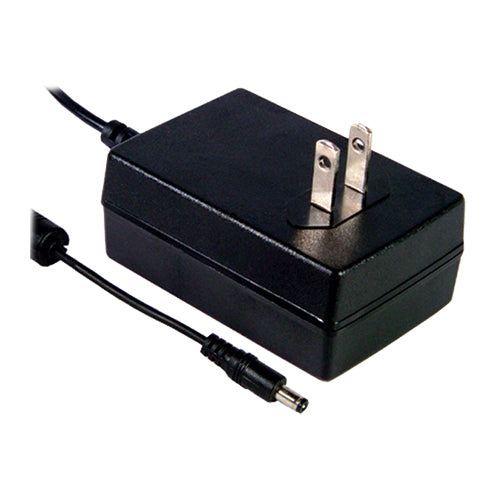

48Vdc Wall Plug-In Adaptor North American Type Plug 48V 0.52AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
0.52 Amps
Max Power:
25 Watts
Known Country of Origin:
China
Features
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Safety approval: UL 62368-1 listed
Complies with EISA 2007/DoE and NRCan
Energy Efficiency Level VI
No load power consumption <0.075W
Pass LPS
LED indicator for power on
Class II, 2 pole North American AC Plug
DC plug type: 2.1x5.5x11mm center positive tuning fork type (optional plug types available)
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
