AA120U-480B-R

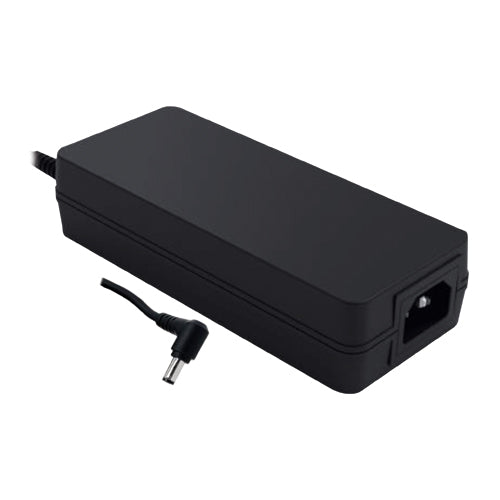

48Vdc 2.5A Desktop Adaptor, UL Listed, AC Input: IEC60320-C14, DC Plug Type: 2.5 x 5.5 x 10.0mm Right AngleManufacturer: Phihong
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
2.5 Amps
Max Power:
120 Watts
Known Country of Origin:
Vietnam
Features
Industrial desktop Adaptor
AC input range: 90~264Vac
Operating temperature range: 0~+40°C
Industrial safety certifications: cULus 62368-1, IEC/EN 62368-1
Energy Efficiency Level VI
Low leakage current ≤250µA
Operation up to 5000m altitude
AC inlet: IEC320 C14
DC plug type: 2.5 x 5.5 x 10.0mm center positive (right angle)
Protections: short circuit / overvoltage / overcurrent / over temperature
Phihong 1 year warranty
