AUM90PS48

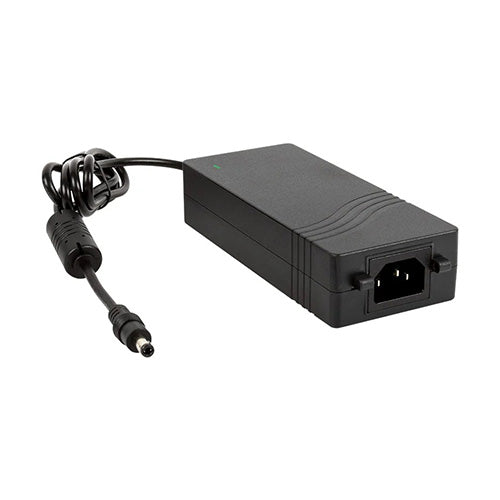

48Vdc 1.87A, Desk Top Power Supply, Medical & ITE Certifications, 48 Volts 1.87 Amps, AC Inlet: IEC320-C14Manufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$56.35
5
$54.87
10
$53.38
25
$50.42
100
$47.45
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.87 Amps
Max Power:
90 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature range: 0~+60°C
Medical, home healthcare & ITE safety approvals
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certifications: IEC/EN 62368-1, UL 62368-1
IP42 ingress protection
Low patient leakage current ≤90µA
<0.15W standby power
AC inlet: IEC 320-C14
DC plug type: 2.5 x 5.5 x 11.0mm center positive
No load power consumption <0.15 Watts
Operating up to 5000m altitude
Protections: short circuit / overvoltage / overload
XP Power 3 year warranty
