Power Worth Searching For
REL-150-1008-CH
48Vdc Power Supply , Chassis , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$159.34
3
$154.58
10
$152.31
25
$145.51
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
3.1 Amps
Max Power:
148 Watts
Known Country of Origin:
USA
Features

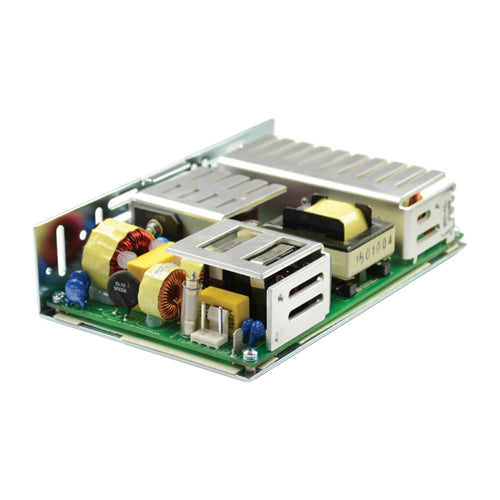

IPD REL-150-1008-CH medical power supply with chassis
AC input range: 85~264Vac
Operating temperature: 0~+70°C
UL60950-1 ITE and AAMI/ANSI ES 60601-1 medical certifications
PFC
Small compact size, dimensions: 3.96″x6.25″x1.48″
Available in open frame and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
