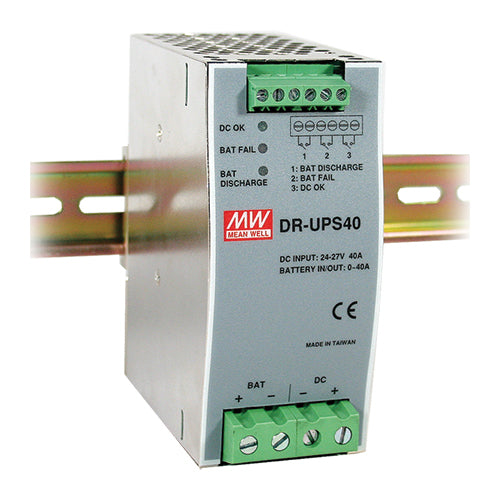

DR-UPS40
24Vdc 40A, DC UPS Battery Control Module For 24V Battery,PSU 21~29 VDC / 40A MaxManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
DC Input:
24~29 VDC / 40A Max
Output:
21~29 VDC / 40A Max
Known Country of Origin:
Not specified
Features
DC BUS rating: 24~29VDC
Battery I/O: 21~29VDC, 40A max
Charge Current: 2A Max
Suggested external battery: 4AH/7AH/12AH, 24 Volts
Relay contact & LED indicator for DC BUS OK, Battery Fail, Battery Discharge
Built-in battery test function
Suitable for UPS operation of 24 Volt system
Installed on DIN rail TS-35/7.5 or 15
Cooling by free air convection
Mean Well 3 years warranty
