AN-1305-A

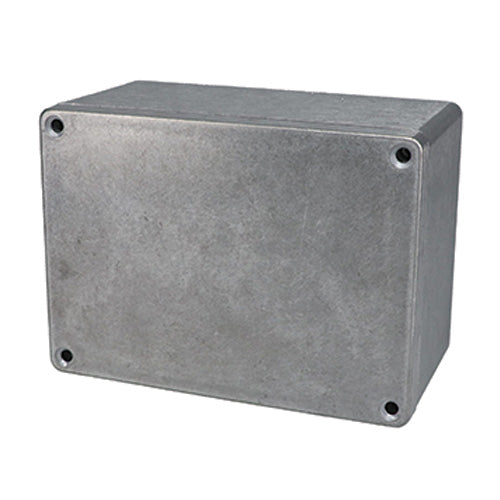

Aluminum Enclosure AN-1305-A, Aluminum Enclosure (5.8 X 4.3 X 3 In)Manufacturer: BUD Industries
View Data Sheet
In Stock: 12 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
5.83x4.25x2.95 inches
Internal Dimensions:
5.34x3.76x2.71 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6, 12, 13
Material:
Aluminum
Color:
Natural
Known Country of Origin:
Taiwan
Features
Direct replacement to AN-13xx series
Pre molded continuous silicon gasket with outstanding performance
Rugged #ADC-12 alloy die cast aluminum box
Available NEMA 6 (natural finish)
IP 67 tested by TUV
Test results exceeded the requirements in respect to IEC60529 IP68 conditions
Type 4X,6,12,13 as listed under UL file #E194432
Cover attaches with stainless screws torqued at 12 in-lb.
Easily machined and modified to your particular requirements
Offers EMC protection
To wall mount: use bracket ANX-1390 and M3.5 or M4 screws (not supplied)
