AN-2810-A

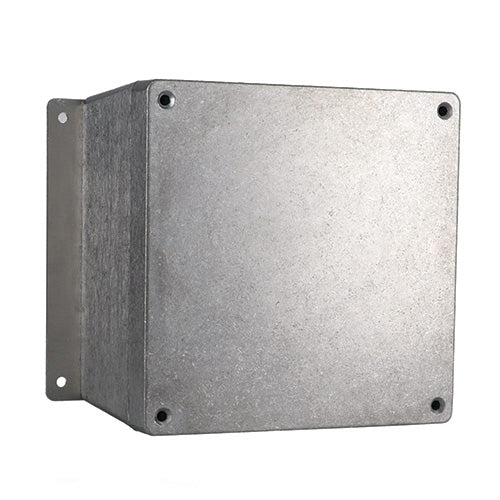

Aluminum Enclosure with Mounting Flanges AN-2810-A, Aluminum Enclosure with Mounting Flanges (6.3 X 6.3 X 4 In)Manufacturer: BUD Industries
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
6.25x6.25x3.99 inches
Internal Dimensions:
5.88x5.88x3.82 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6, 12, 13
Material:
Aluminum
Color:
Natural
Known Country of Origin:
Taiwan
Features
Direct replacement to AN-28xx series
0.09 inch welded mounting flanges allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
Pre molded continuous silicon gasket with outstanding performance
Rugged #ADC-12 alloy die cast aluminum box
Available NEMA 6 (natural finish)
IP 67 tested by TUV
Test results exceeded the requirements in respect to IEC60529 IP68 conditions
Type 4X,6,12,13 as listed under UL file #E194432
Cover attaches with stainless screws, 3M (torqued at 12 in-lb.)
Easily machined and modified to your particular requirements
Offers EMC protection
AN-2810-A
Aluminum Enclosure with Mounting Flanges AN-2810-A, Aluminum Enclosure with Mounting Flanges (6.3 X 6.3 X 4 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
6.25x6.25x3.99 inches
Internal Dimensions:
5.88x5.88x3.82 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6, 12, 13
Material:
Aluminum
Color:
Natural
Known Country of Origin:
Taiwan
Features
