ANS-3817-B

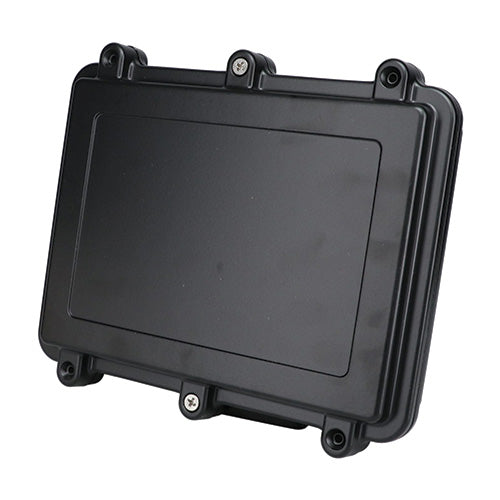

Aluminum Enclosure with EMI/RFI Shielding Gasket Black ANS-3817-B, Aluminum Enclosure with EMI/RFI Shielding Gasket Black (7.9 X 5.9 X 2 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
7.87x5.91x1.97 inches
Internal Dimensions:
7x5.03x1.77 inches
Ratings:
IP65, 66, NEMA 4X
Material:
Aluminum
Color:
Black Powder Coat
Known Country of Origin:
Taiwan
Features
Rugged #ADC-12 die cast aluminum alloy.
Thick wall (0.098 inch, 2.5 mm) construction provides strength and rigidity for heavy duty applications.
One-piece molded outer Silicone gasket provides reliable and long lasting sealing to meet NEMA 4X and IP67 requirements.
Second wire-mesh with sponge rubber gasket provides excellent EMI/RFI protection.
Captive cover assembly screws (M4) are located outside the sealing area.
Recessed area on cover surface for decals.
Easily machined and modified to your particular requirements.
Finish: Smooth black powder-coat
Optional die cast external mounting brackets available - ANX-1390 (Natural), ANX-1390-B (Black)
