BT-2734

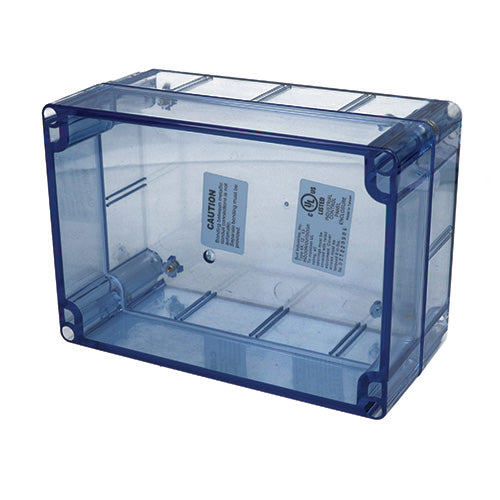

Clear Plastic Enclosure BT-2734, Blue Clear Plastic Enclosure (7.9 X 4.7 X 3 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
7.87x4.72x2.96 inches
Internal Dimensions:
7.61x4.46x2.64 inches
Ratings:
IP65, 66, NEMA 1, 2, 4, 4X, 12, 13
Material:
Plastic
Color:
Transparent Blue
Known Country of Origin:
Taiwan
Features
Transparent blue polycarbonate design reduces the need to remove cover to verify NEMA protection.
Near complete transparency to blue, white, and near white displays.
Plastic enclosure designed to IEC52/IP65 and NEMA 1, 2, 4, 4x, 12, and 13 specifications.
UL Listed to UL508-4x specifications (file# E194432).
Lap joint design combined with silicon gasket ensures protection against ingress of dust and splashing water.
Internal guide slots for mounting PCB assemblies vertically on some models.
Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc., into threaded brass inserts.
Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
UV stabilized polycarbonate with UL94-V2 flammability rating.
