CN-6703

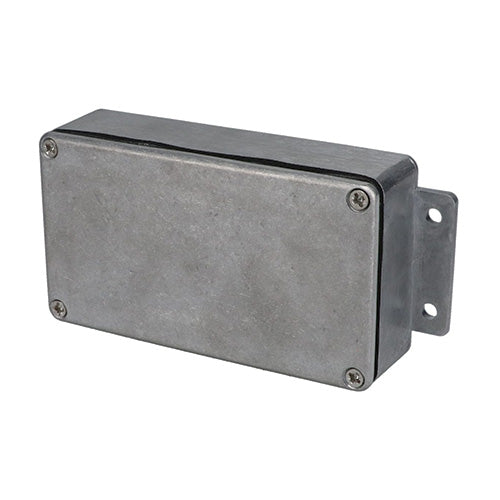

Mountable Die Cast Aluminum Enclosure CN-6703, Mountable Die Cast Aluminum Enclosure (4.5 X 2.5 X 1.2 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
4.51x2.5x1.22 inches
Internal Dimensions:
4.18x2.17x1.09 inches
Ratings:
IP65, 66, NEMA 1, 2, 4, 4X, 12, 13
Material:
Aluminum
Color:
Natural
Known Country of Origin:
Taiwan
Features
Designed to meet NEMA 1, 2, 4, 4x, 12, 13 and IP66 ratings.
Made from durable ADC-12 aluminum alloy.
Self-adhesive Neoprene gasket easily attaches to cover.
Molded-in mounting flanges located along the short side of the box.
Cover attaches with 4 or 6 stainless steel, M3.5 thread-forming screws.
Most models have internal card guides for mounting PC Boards or partitioning.
Easily machined and modified to your particular needs.
Finish: Natural (other finishes available upon request).
CN-6703
Mountable Die Cast Aluminum Enclosure CN-6703, Mountable Die Cast Aluminum Enclosure (4.5 X 2.5 X 1.2 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
4.51x2.5x1.22 inches
Internal Dimensions:
4.18x2.17x1.09 inches
Ratings:
IP65, 66, NEMA 1, 2, 4, 4X, 12, 13
Material:
Aluminum
Color:
Natural
Known Country of Origin:
Taiwan
Features
