DMX-4779-G

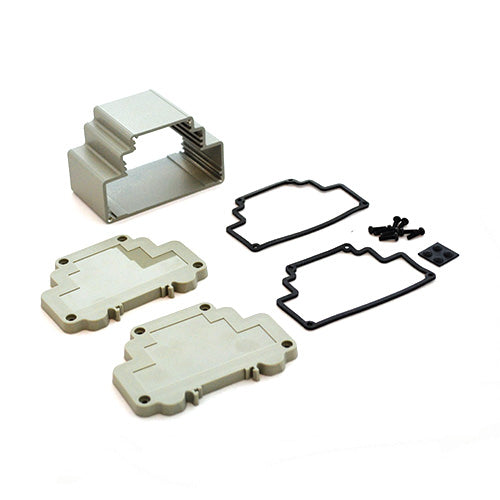

DIN Rail Extruded Aluminum Box DMX-4779-G, DIN Rail Extruded Aluminum Box (3.9 X 3.1 X 2.7 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
3.87x3.08x2.72 inches
NEMA/IP Ratings:
IP66
Material:
Aluminum
Color:
Light Gray
Known Country of Origin:
Taiwan
Features
Designed to mount over a DIN rail while offering all the advantages of an aluminum construction
Comes standard with an EPDM gasket (IP66) and a polycarbonate covers UL94-V0
Extruded aluminum enclosure with plastic panels
Can be used independently or mounted on a DIN EN60715 (35 mm) rail
Plastic panels incorporate a tongue and groove sealing design, with a continuous EPDM gasket designed to meet IP66 rating
Body: Aluminum alloy 6063
Plastic end panels: Polycarbonate, flammability rating of UL94-V0
Gasket: EPDM molded (E-4382)
Color: Gray (RAL7023)
Different length of the aluminum enclosure can be special ordered (minimum ordering quantity will be required)
Optional clear and infrared polycarbonate plastic covers available
Bud can modify the enclosure with drilled holes and special cutouts
