DPS-28710-C

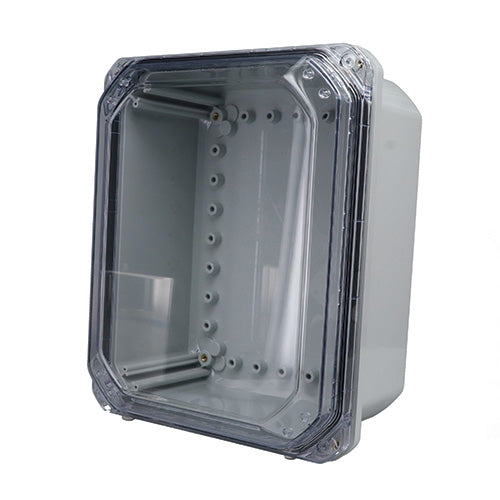

DPS-28710-C Heavy-Duty NEMA 6P IP68 Plastic Enclosure, Clear Screw-Down Cover, Clear Screwed Cover IP68 NEMA 6P PC Enclosure with Adjustable panel height (11 X 9 X 5.7 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
11.04x9.04x5.22 inches
Internal Dimensions:
10.04x8.04x4.89 inches
Ratings:
IP68, NEMA 1, 2, 3R, 4, 4X, 6, 6P, 12, 13
Material:
Plastic
Color:
Light Gray
Known Country of Origin:
USA
Features
Rated NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X, 12 & 13 rated
Rated IP65, IP66, IP67, IP68
Impact-resistant polycarbonate UL94-5VA (clear cover is UL94-V0)
Continuous gasket for a watertight seal
Designed for outdoor use: weatherproof, waterproof and corrosion-resistant
Removable clear cover with stainless steel hardware
Stainless steel latch with area for padlock
Modular mounting bosses in base for panel and DIN rail mounting
Additional mounting bosses at top of base and inside the cover
Multiple mounting panel kits. options include: Base, Hinged, Cover and Floating
Optional multi-directional mounting flanges for horizontal or vertical orientation
DPS-28710-C
DPS-28710-C Heavy-Duty NEMA 6P IP68 Plastic Enclosure, Clear Screw-Down Cover, Clear Screwed Cover IP68 NEMA 6P PC Enclosure with Adjustable panel height (11 X 9 X 5.7 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
11.04x9.04x5.22 inches
Internal Dimensions:
10.04x8.04x4.89 inches
Ratings:
IP68, NEMA 1, 2, 3R, 4, 4X, 6, 6P, 12, 13
Material:
Plastic
Color:
Light Gray
Known Country of Origin:
USA
Features
