NBB-10253

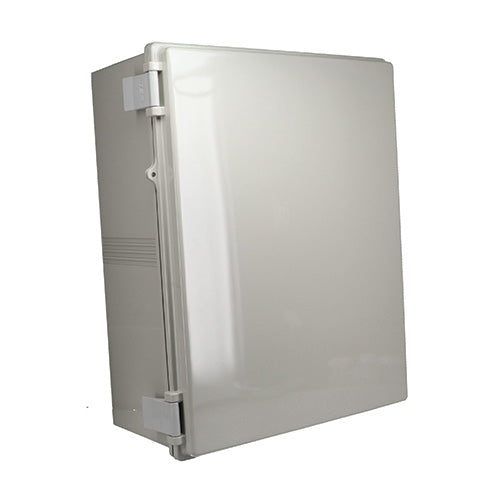

NEMA Box ABS Poly Blend NBB-10253, NEMA Box ABS Poly Blend (19.2 X 14.6 X 7.9 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
19.17x14.64x7.85 inches
Internal Dimensions:
18.33x13.75x7.6 inches
Ratings:
IP66, NEMA 1, 4, 4X
Material:
Plastic
Color:
Light Gray
Known Country of Origin:
South Korea
Features
Designed to IP66 of IEC 529 and NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 specifications
UL Listed to UL508-4X requirements
Molded out of light gray material with UL94-5VB flammability rating. Suggested service temperature range -40°C to 70°C
Non-metallic latches and hinges
Cover includes gray polyurethane gasket. Opaque door.
Unit comes with wall mounting brackets and screws
