PBB-11835-3

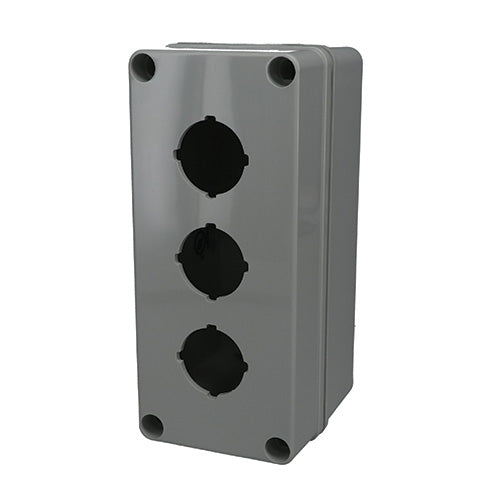

Polycarbonate Three Push Button Box PBB-11835-3, Polycarbonate Three Push Button Box (7.1 X 3.2 X 3.4 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
7.09x3.15x3.35 inches
Internal Dimensions:
5.67x1.73x2.75 inches
Ratings:
IP67
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
South Korea
Features
Suited for three 30mm push buttons, four-way keyed.
Body made of gray polycarbonate resin 10% glass fiber filled.
Cover made of gray polycarbonate.
High impact resistance. IP 67 TUV rating keeps out dust and water in extreme conditions.
UL508 / NEMA type 4X and type 6 listed #E343339.
CE Low Voltage directive 2006/95/EC Compliant.
RoHs compliant.
Non-chlorinated and non-brominated flame retardant with UL-94 V0 rating.
Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C.
Nonmetallic captive screws without the risk of stripping.
Good chemical resistance.
Continuous gasket.
