PN-1324

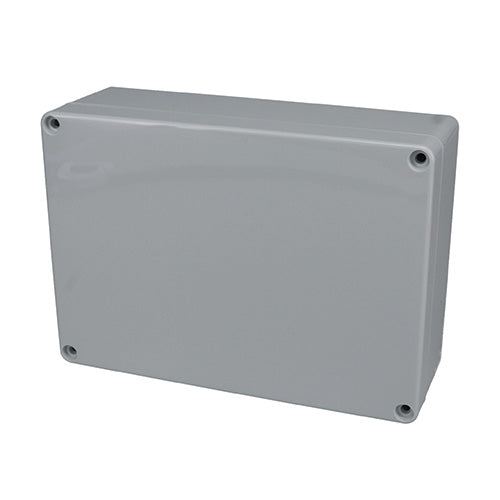

IP65 NEMA 4X Box PN-1324, IP65 NEMA 4X Box (6.7 X 4.8 X 2.2 In)Manufacturer: BUD Industries
View Data Sheet
In Stock: 11 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
6.73x4.76x2.17 inches
Internal Dimensions:
6.35x4.38x1.93 inches
Ratings:
IP65, 66, NEMA 1, 2, 4, 4X, 12, 13
Material:
Plastic
Color:
Light Gray
Known Country of Origin:
Taiwan
Features
UL508A & NEMA 1, 2, 3, 4, 4x 12, and 13 enclosure specifications
Designed to IP65 of IEC 529
UL Listed (E194432 Vol 1)
Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
Most models have internal guide slots for mounting PCB assemblies vertically.
Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc.
Threaded brass inserts
Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
Gasket Material: Silicon Sponge
