PN-1331-MB

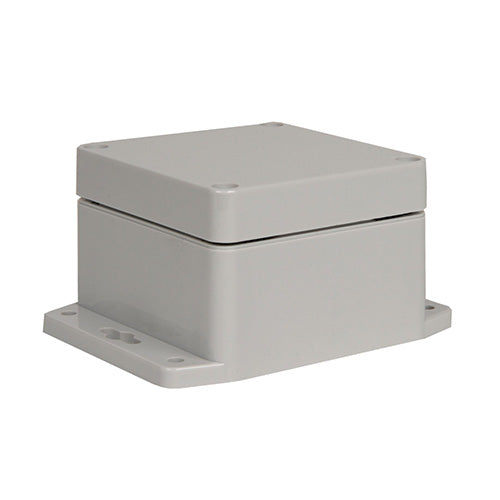

IP65 NEMA 4X Box with Mounting Brackets PN-1331-MB, IP65 NEMA 4X Box with Mounting Brackets (3.2 X 3.2 X 2.2 In)Manufacturer: BUD Industries
View Data Sheet
In Stock: 23 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
3.23x3.15x2.17 inches
Internal Dimensions:
2.97x2.89x1.93 inches
Ratings:
IP65, 66, NEMA 1, 2, 4, 4X, 12, 13
Material:
Plastic
Color:
Light Gray
Known Country of Origin:
Taiwan
Features
Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications
UL Listed
Molded external mounting brackets eliminate the need for assembly of separate brackets
Cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust in the NEMA box.
Most models have internal guide slots for mounting PCB assemblies vertically.
Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
Gasket Material: Silicon Sponge
