PTH-22506

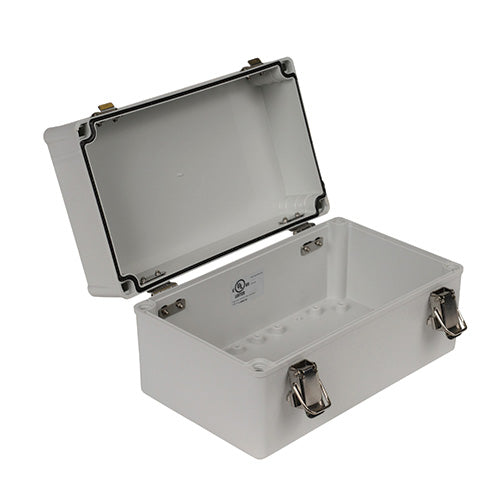

Fiberglass Box with Self-Locking Latch PTH-22506, PC+10% Fiberglass Box with Self-Locking Latch (9.8 X 5.9 X 5.1 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
9.84x5.91x5.12 inches
Internal Dimensions:
9.6x5.67x4.63 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
South Korea
Features
Body made of gray polycarbonate plastic 10% glass fiber filled
Hinged cover made of gray polycarbonate plastic
High impact resistance
Stainless steel latch
IP-67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6)
UL508 / UL tested for type 4X, listed #E343339
RoHs compliant
Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating
Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
-40c to +95c extended exposure condition
Good chemical resistance
Continuous gasket
