PTK-18428

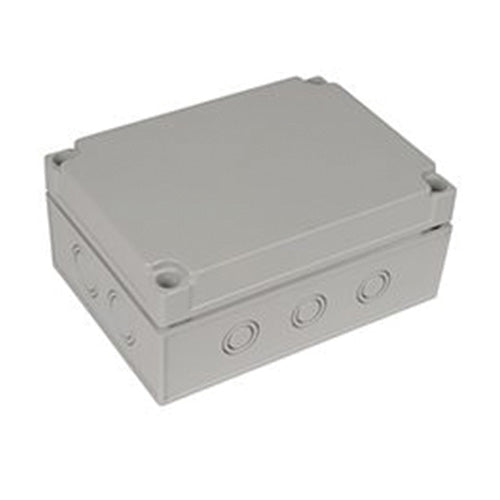

Fiberglass Box with Knockouts PTK-18428, PC+10% Fiberglass Box with Knockouts (6.9 X 4.9 X 3 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
6.89x4.92x2.95 inches
Internal Dimensions:
6.51x4.62x2.67 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
South Korea
Features
Two pre-molded knock outs (21-22 mm) for easy field installation and modification cost savings
Body made of gray polycarbonate (PC) plastic 10% glass fiber filled
Cover made of gray polycarbonate (PC) plastic
Outstanding strength and high impact resistance
Nonmetallic cover screws
IP-67 TUV rating to keep out dust and water in extreme conditions.
UL508 / NEMA type 4X and type 6 listed #E343339
RoHs compliant
UL industrial controls listed
Non-chlorinated & non-brominated flame retardant with UL-94 5VA rating
Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
-40c to +95c extended exposure condition
Good chemical resistance
Continuous poured RAKU-PUR® Foam gasket
