Power Worth Searching For
PTQ-11064-C

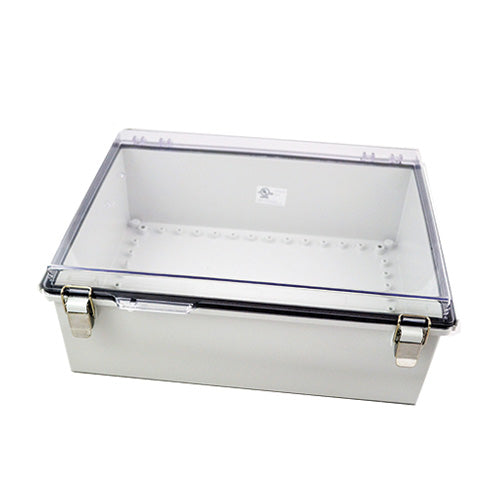

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11064-C, PC+10% Fiberglass Box with Stainless Steel Latch and Clear Cover (15 X 11 X 5.1 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
14.96x11.02x5.12 inches
Internal Dimensions:
13.84x9.89x4.42 inches
Ratings:
IP67, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
South Korea
Features
Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Hinged Cover made of Clear Polycarbonate (PC)
High impact resistance IK08
Stainless steel latch
IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
UL508 / UL tested for type 4X, listed #E194432.
RoHs compliant
Non-chlorinated & non-brominated flame retardant With clear cover UL-94 V0 and body UL-94 V0 and UL-94 5VA rating.
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
-40c to +95c extended exposure condition
Good chemical resistance
Continuous gasket
