PTR-28486-C

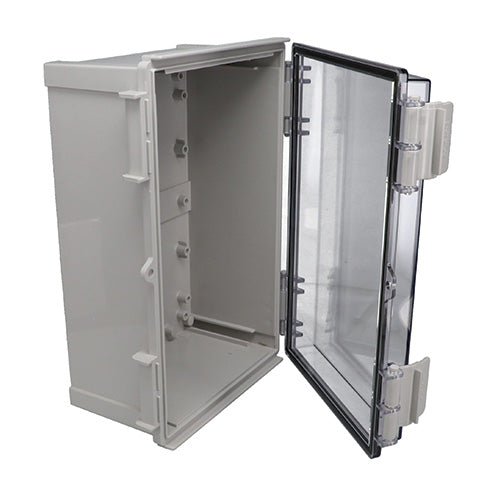

Hinged ABS Plastic Box Clear Cover PTR-28486-C, PTR series - NEMA 4x abs indoor - clear cover (7.9X11.8X5.1)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
11.8x7.9x5.1 inches
Internal Dimensions:
11.55x7.65x4.85 inches
Ratings:
IP67, NEMA 4, 4X, 6, 6P
Material:
Plastic
Color:
Light Gray
Known Country of Origin:
South Korea
Features
All plastic construction
Plastic locking latch and hinges
Low-cost quality enclosure series designed to perform well in indoor conditions
Optional steel or plastic internal panel (PTX-18486, PTX-18486-P)
Body made of gray ABS plastic
Cover made of clear polycarbonate plastic
High impact resistance
IP-67 certified TUV rating to keep out dust and water in extreme conditions
Meets NEMA type 4X and type 6P (No UL certification)
ROHS compliant
UL-94 HB flammability rating
-20 C to +65 C extended exposure condition
Continuous poured-in-place neoprene foam gasket
