SNB-3746

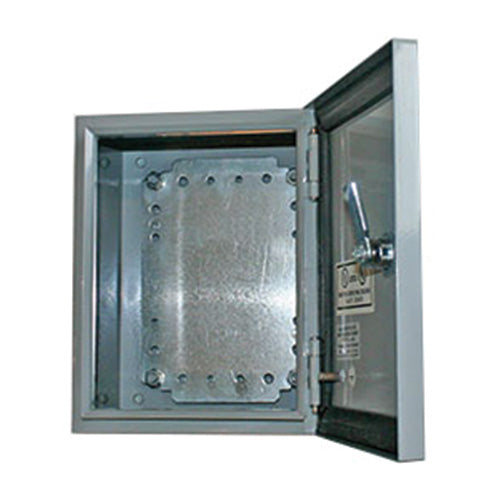

Electronics Enclosure with Keyed Quarter Turn Latch SNB-3746, Electronics Enclosure with Keyed Quarter Turn Latch (20 X 16 X 8 In)Manufacturer: BUD Industries
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
20x16x8 inches
Internal Dimensions:
14.41x18.41x7.73 inches
Ratings:
IP65, 66, NEMA 1, 2, 4, 4X, 12
Material:
Steel
Color:
Gray Powder Coat
Known Country of Origin:
China
Features
Continuous seam welded 16 gauge. steel
Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
Bonding studs for grounding are provided on base and door
Internal panel and hardware included
UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings
Easily machined and modified to your particular requirements
Finish: Smooth Gray powder coat, Internal Panel - Clear Zinc plate
Continuous gasket
