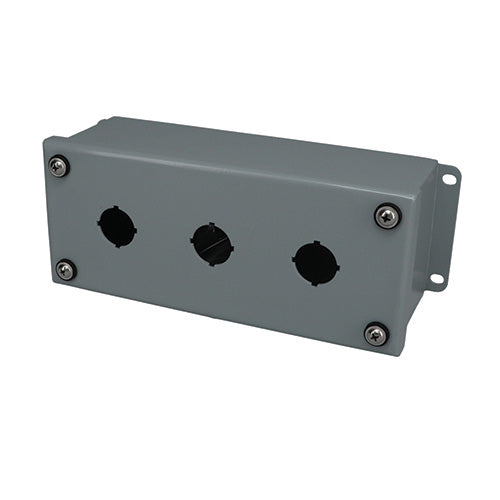

SPB-3903
Pushbutton Box SPB-3903, Pushbutton Box (8 X 3.3 X 2.8 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
8x3.25x2.75 inches
Internal Dimensions:
6.62x2.75x2.77 inches
Ratings:
IP65, 66, NEMA 4, 12, 13
Material:
Steel
Color:
Gray Powder Coat
Known Country of Origin:
China
Features
Heavy duty 14 GA steel seam welded construction
Cover with captive screws and sealing washer
Cover screws thread into sealed nuts for additional sealing protection
Cover has oil resistant die-cut gasket for reliable and lasting protection against dust, water and oil
Cover supplied with three 22.5-mm four-way push button box holes
Welded ground nut inside body
External flanges with holes for wall mounting
Durable ANSI 61 Grey Powder coating
Designed to comply with NEMA and UL-508A Type 4, 12 and 13 rating
UL listed
