PI-1908

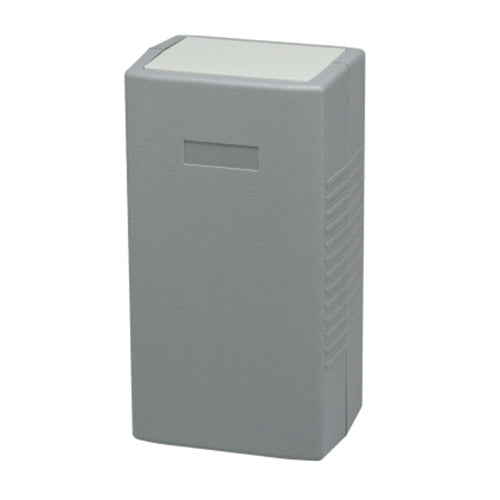

Electronic Enclosure ABS Plastic Dark Gray PI-1908, Electronic Enclosure ABS Plastic Dark Gray (2.4 X 3.1 X 5.9 In)Manufacturer: BUD Industries
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
External Dimensions:
2.36x3.14x5.91 inches
Internal Dimensions:
2.2x2.78x5.46 inches
Material:
Plastic
Color:
Dark Gray
Known Country of Origin:
Taiwan
Features
Ideally suited for instrumentation and telecommunications equipment
Dark gray ABS covers with light gray ABS end panels
UL94V-0 flammability rating
Suggested service temperature -40C to 80C
Designed to IP54 of IEC 529
Two part design with tongue and groove joint between top and bottom covers and specially designed end panels
Internal guide slots provide for vertical mounting of PCBs
Internal bosses provided for horizontal mounting of PCBs
Top and bottom covers are lightly textured providing a scratch-resistant high quality finish
Four screws are countersunk in the bottom cover and threaded into internal bosses which secure the top cover and end panels
