MEB-750A24T AAA

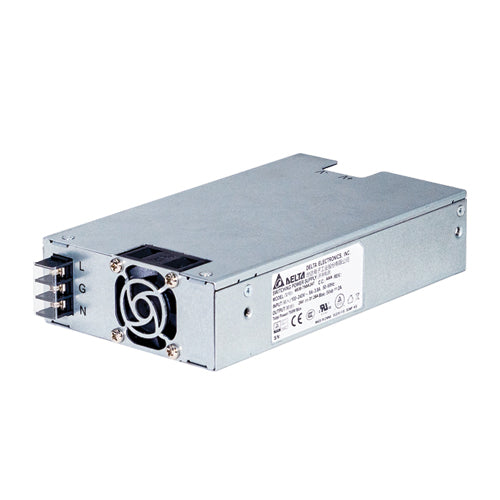

24Vdc 31.25A Medical Power Supply Enclosed w-Fan/Terminal Block 24Volts 31.25 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$266.94
5
$263.24
10
$259.63
25
$256.12
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
31.25 Amps
Max Power:
750 Watts
Known Country of Origin:
China
Features
Enclosed medical power supply with US Terminal Block
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
Industrial safety certifications: IEC/EN 62368-1, UL 62368-1, IEC/EN 60950-1
2xMOPP
Suitable for BF applications
Built-in 5V/2A standby output
Current sharing
Built-in remote On/Off, remote sense
Power good signal
Built-in PFC
Adjustable output voltage via potentiometers
Built-in DC fan
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
