GRN-360-1003-CHCO
Single Output Power Supply , Medical Power Supply , Chassis & CoverManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$174.95
3
$169.73
10
$167.24
25
$162.81
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
18Vdc
Output Max Current:
20 Amps
Max Power:
360 Watts
Known Country of Origin:
USA
Features

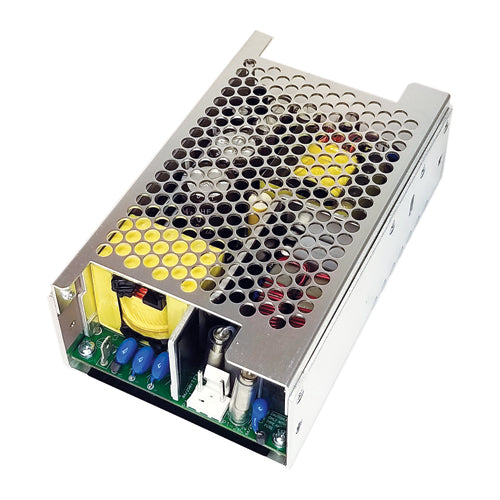

IPD GRN-360-1003-CHCO 3x5 inches chassis power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
Medical safety certification: Meets EMC emission immunity to IEC 60601-1-2 4th edition
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
MIL-STD-810G
Shock & vibration proof
Low earth leakage current <300µA
Adjustable output voltage
Remote sense function
Built-in PFC
No load power consumption <0.5 Watts
Built-in 12V/0.6A auxiliary output for fan
AC power fail signal
Compact size: 3x5 x1.49, Available in optional open frame and chassis
Protections: overvoltage / overload
Integrated Power Designs 3 year warranty
