REL-185-4006-CHCO

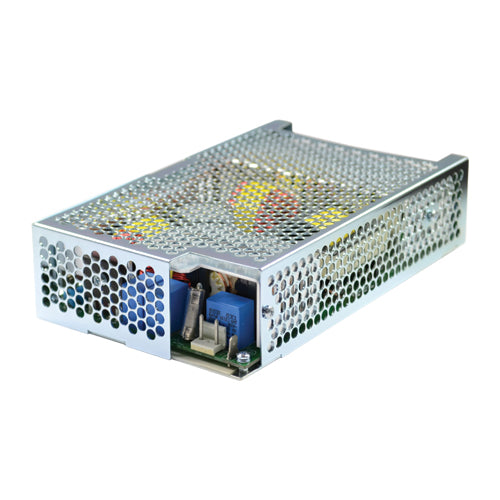

Quad Output Power Supply , Chassis & Cover , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$233.60
3
$226.63
10
$223.29
25
$213.93
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
20 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
3 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
2 Amps
Max Power:
185 Watts
Known Country of Origin:
USA
Features
IPD REL-185-4006-CHCO enclosed medical power supply with chassis & cover
AC input range: 85~264Vac
Operating temperature: 0~+70°C
Industrial safety approvals: UL 60950-1 and IEC/EN 62368-1
Medical safety approvals: AAMI/ANSI ES 60601-1 & IEC 60601-1-2 4th Edition EMC compliant
2 x MOPP - Means of Patient Protection (primary to secondary)
PFC
Small compact size dimensions: 4.36x7.23x1.74
Available in open frame and chassis
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
